Description

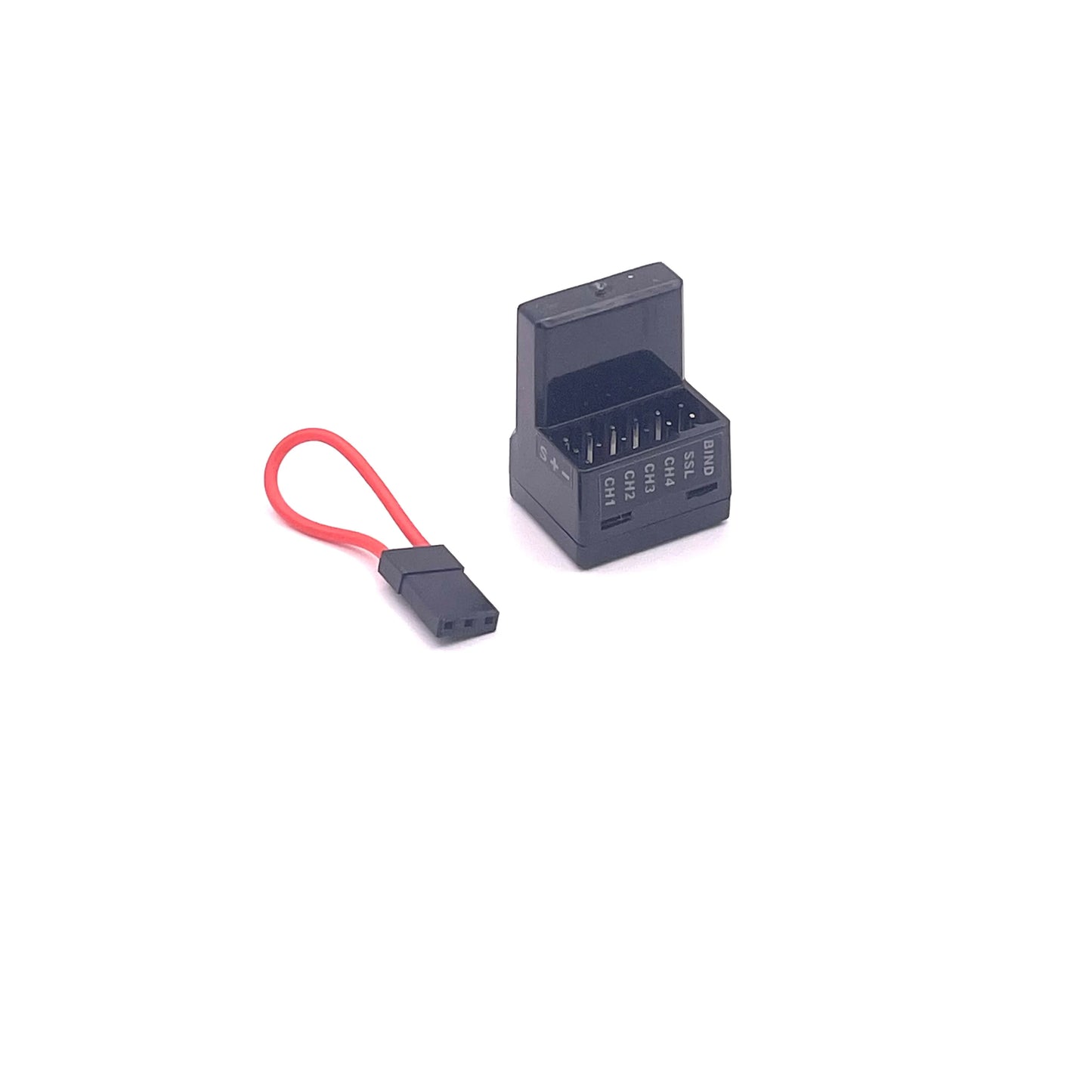

SND SRX3 Sanwa FH5 Compatible 4CH Antenna-free receiver.

Description:
The SMD SRX3 Sanwa2.4GHz 4-Channel FHSS5 compatible SSL Telemetry receiver uses a built-in antenna with exceptional range and response time. With a lightweight design and a small footprint, this receiver is great for 1/10 and 1/12 scale electric RC cars. This receiver is SSL compatible with either the Super Vortex or PGS Servos (Sold Separately). Package includes one receiver and one bind plug.

Features:
1. Sanwa 2.4GHz FHSS5U/FHSS5 spread spectrum system compatible
2. Compatible with SSL (SUPER VORTEX Series, etc...)
3. Ultra Response Mode (SUR)
4. Extreme Response Mode (SXR)
5. Dual ID system (able to bind with 2 transmitters)
6. Micro size (18.2x20.2x27.4mm)
7. Operating Voltage 3.5V - 8.4V
8. Weight: 5g

NOTE:
SXR response mode is only compatible with transmitter M17 and Exzes Zlll

Compatible Transmitters:
Sanwa M17
Sanwa MT-5
Sanwa MT-R
Exzes Zlll

Package Included:
1 x Receiver
1 x Bind cable

Binding Instruction FH5 Sanwa Compatible Receiver

1. Turn on transmitter, enter [BIND] to be bind mode.
2. Connect BIND plug in BIND port then turn on receiver.
3. LED will change from slow flashing blue to fast flashing blue.
4. Turn off receiver, remove BIND plug, then turn on.
5. Finish BIND mode on transmitter.
