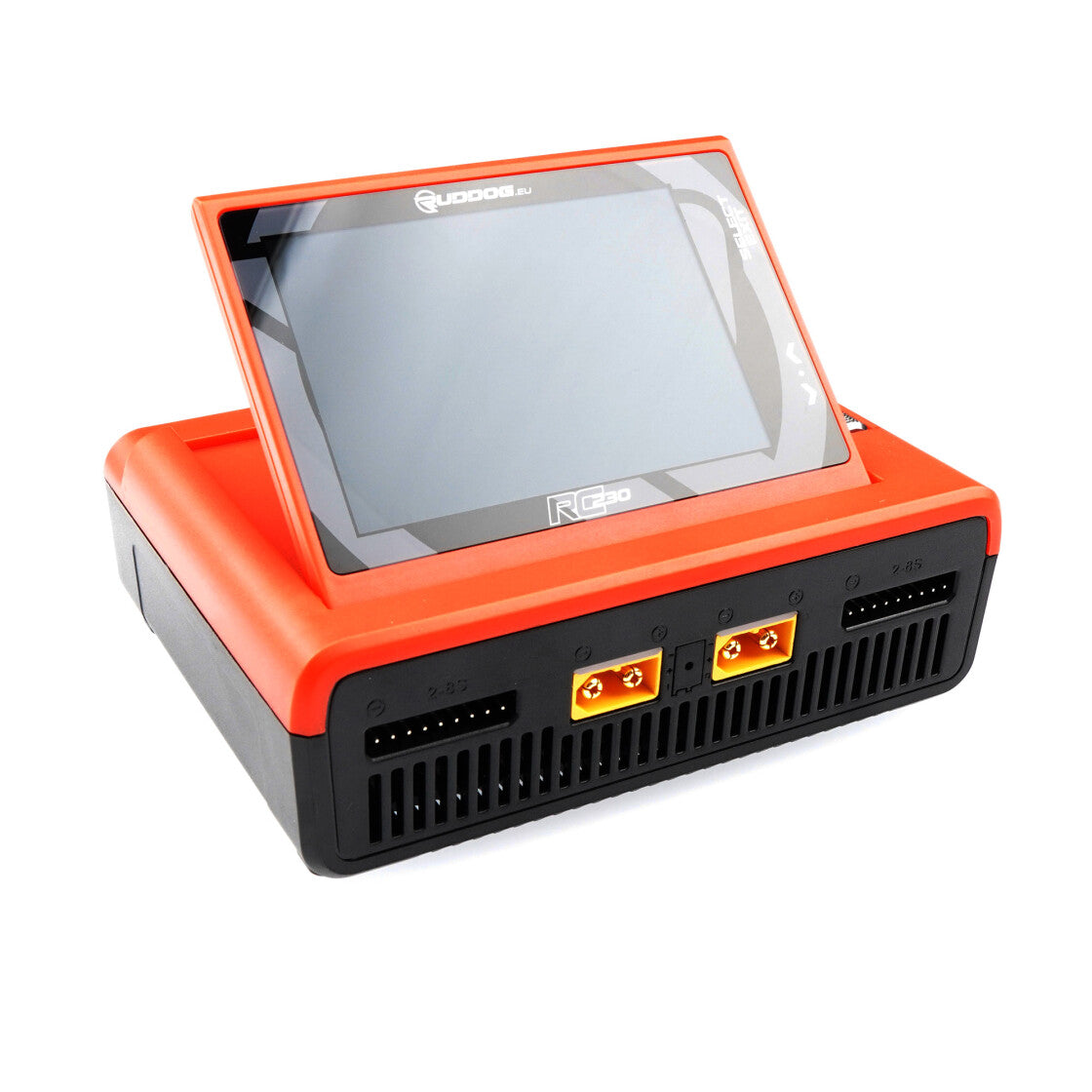

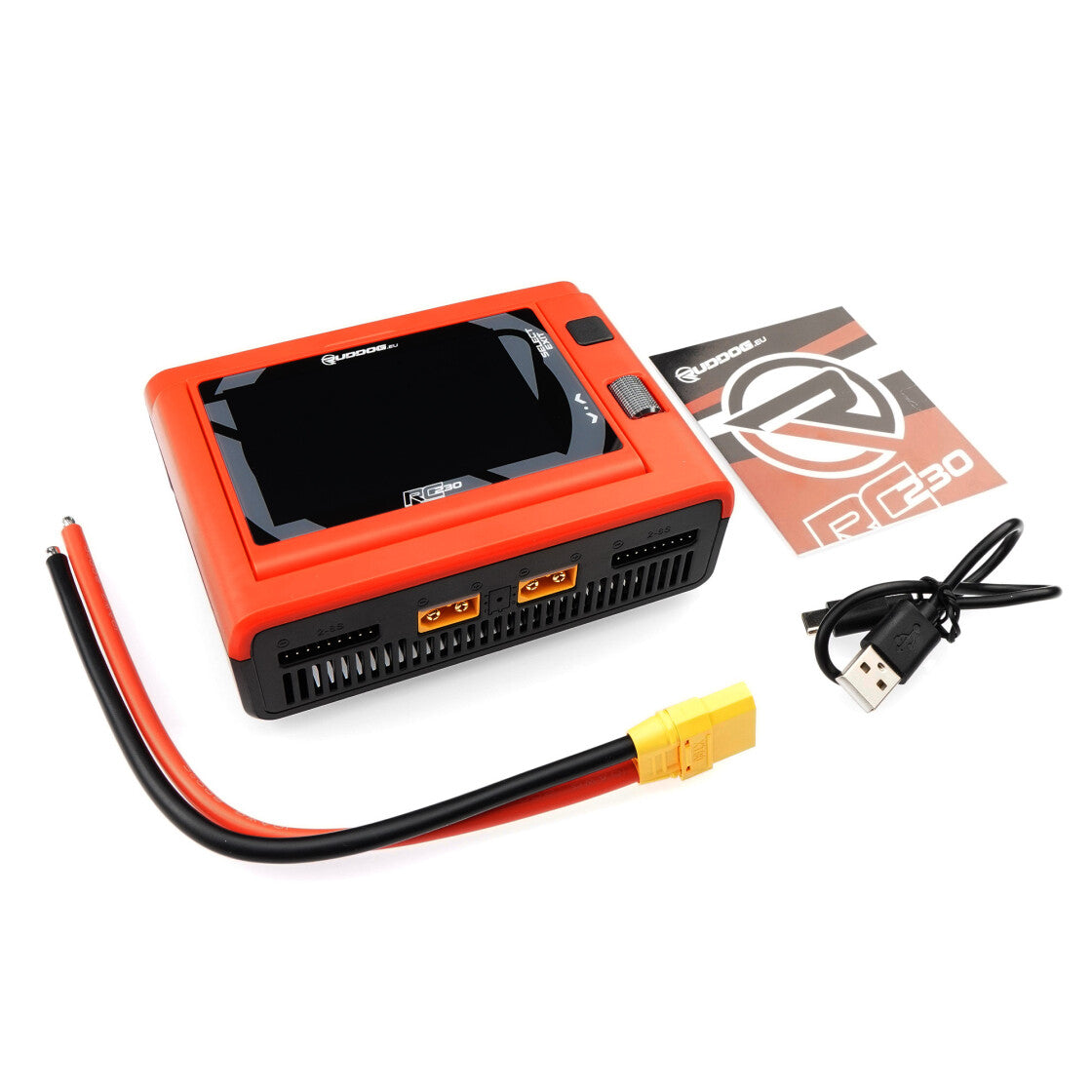

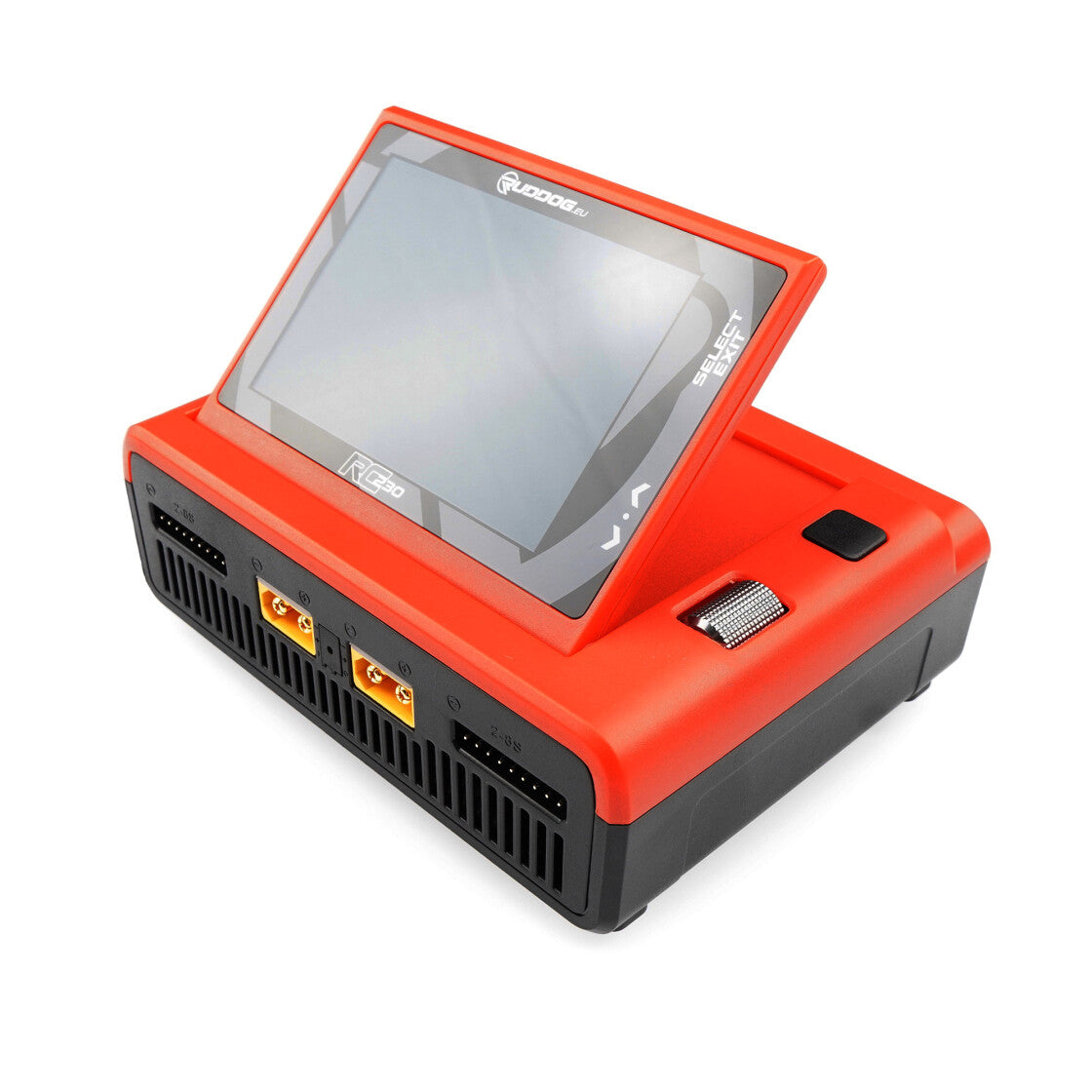

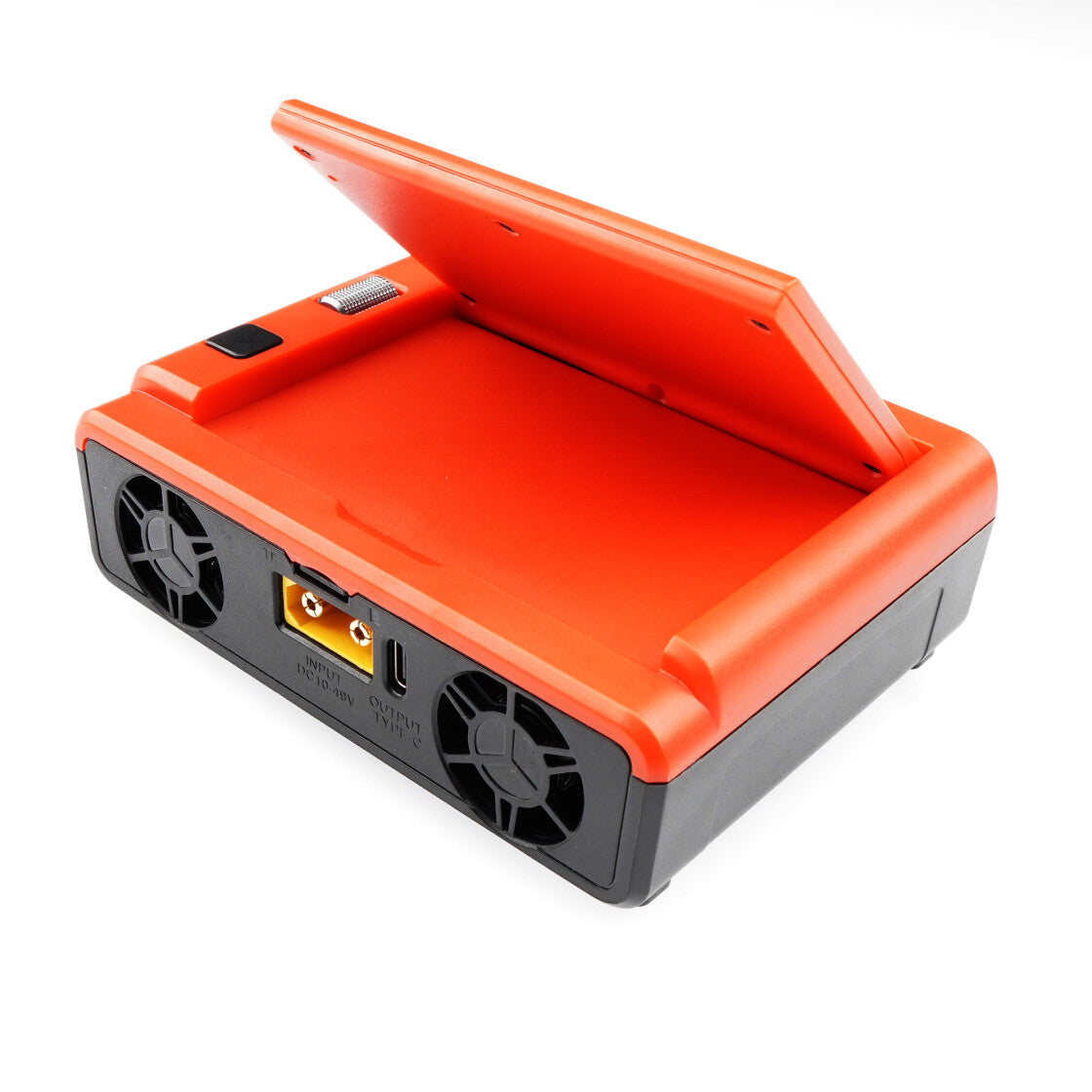

RUDDOG RC230 Dual Channel LiPo Battery DC Charger

The RUDDOG RC230 Dual Channel LiPo Battery DC Charger is a powerful and versatile charger that allows up to two battery packs to be charged simultaneously with up to 30A charging current. In combined SYNC mode, a maximum charging current of 50A is possible. The DC charger can be used with 1S to 8S LiHV/LiPo, 1 to 20 cells NiMH or 1 to 15 cells Pb batteries and operates with an input voltage of 10VDC to 49VDC. A powerful discharge function allows a discharge current of up to 30A in recycle mode or 10A in normal mode.

The capacitive touchscreen display offers intuitive operation and allows monitoring of the most important parameters of the charger and batteries. With its compact dimensions, it is easy to store and transport the charger, making it ideal for the weekly race.

Specifications & Features:

• Input voltage: 10-49VDC, max. 60A
• Battery Type: LiPo, LiHv, LiFe, Lion, LTO(1-8S), NiMh(1-20S), Pb(1-15S)
• Charging power: 0.1-30.0A@800W x2 ASYN | 0.1-50.0A@1600W SYNC
• Discharge Capacity: 0.1-30.0A@800W x2 Recycle | 0.1-10.0A@40W x2 Normal
• Balancing Current: 2000mA@4.2V
• USB-C Output: 5-20V@65W PD QC PPS AFC SCP
• Dimensions: 131x97x43mm
• Weight: 500g
